What types of projects is the PrecisionStage 4X designed for?

The platform is designed for tasks that require accurate positioning of small components, including drilling, light machining, inspection, optical alignment, electronics work, prototyping and detailed mechanical assembly.

Which directions can I adjust?

The PrecisionStage 4X provides four-axis control. You can move the platform left and right along the X axis, forward and backward along the Y axis, vertically along the Z axis, and fine-tune its angle using the rotational R axis.

How precise are the adjustments?

The platform has a minimum scale reading of 0.01 mm and a stated straightness of 0.01 mm. This allows you to make small, controlled corrections when accurate positioning is required.

What is the maximum supported load?

The recommended maximum centred load is 29.4 N, equivalent to approximately 3 kg. Keeping the load centred helps maintain stability and smooth movement.

How do I secure the workpiece?

The 60 × 60 mm platform can be used with a compatible fixture, clamp or custom mounting solution. Always secure both the platform and the workpiece before beginning drilling, machining or inspection.

Does the PrecisionStage 4X require electricity?

No. It is a fully manual positioning platform and does not require a battery or electrical connection. All four axes are adjusted using the built-in controls.

0.01 mm

Fine adjustment

4-Axis XYZR

Positioning control

Up to 3 kg

Stable load support

0.01 mm

Fine adjustment

4-Axis XYZR

Positioning control

Up to 3 kg

Stable load support

Built for precision assembly, component inspection, optical alignment, electronics and detailed workshop projects.

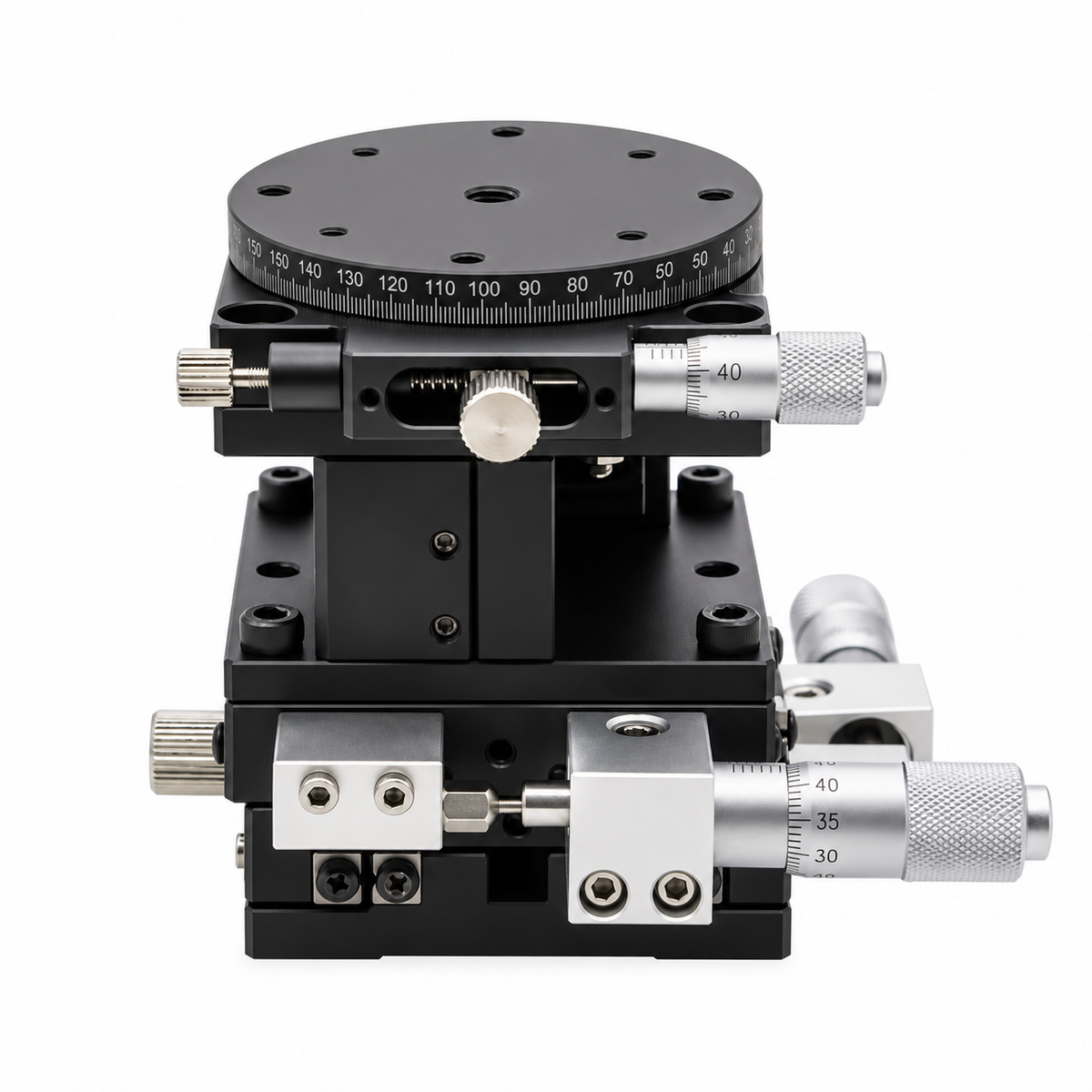

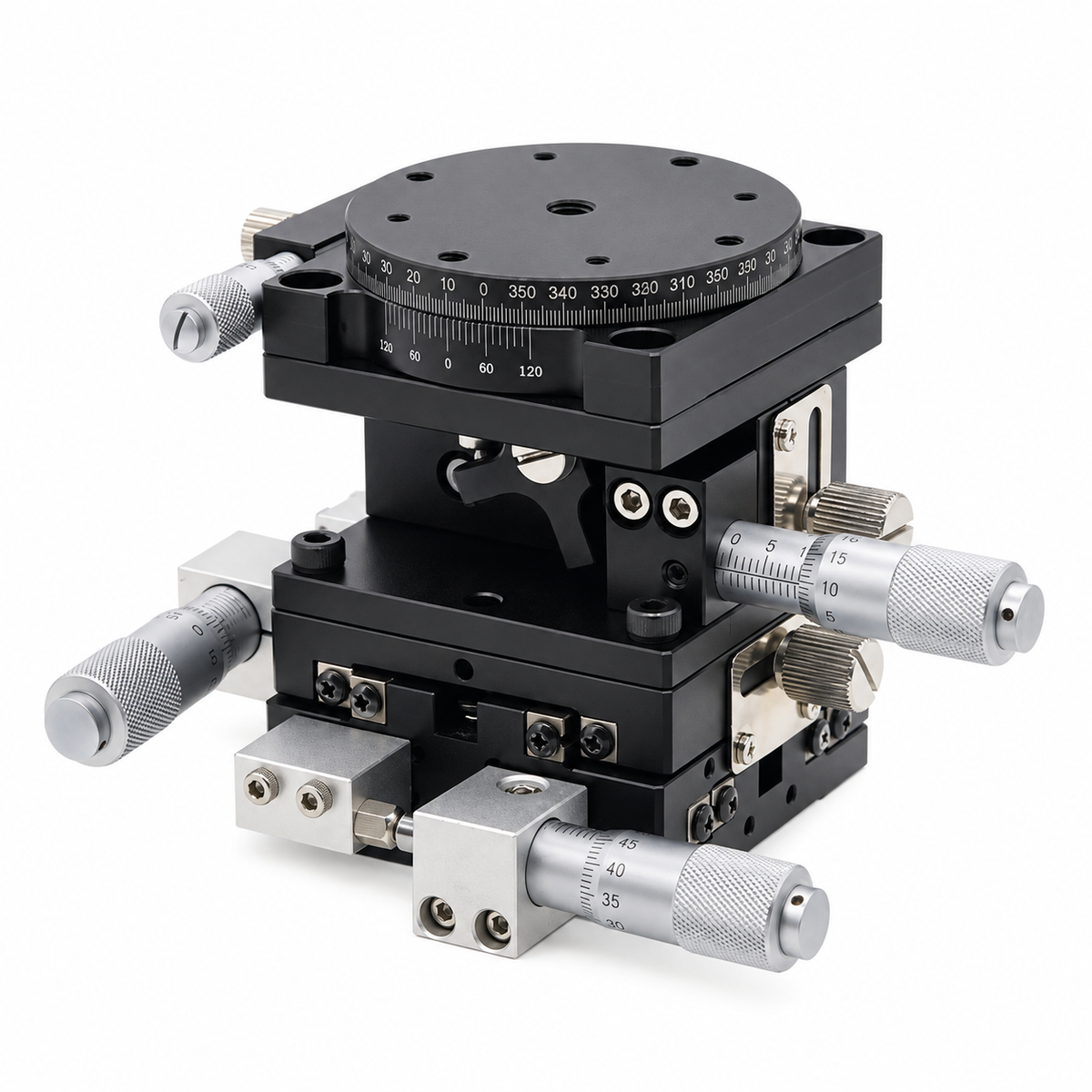

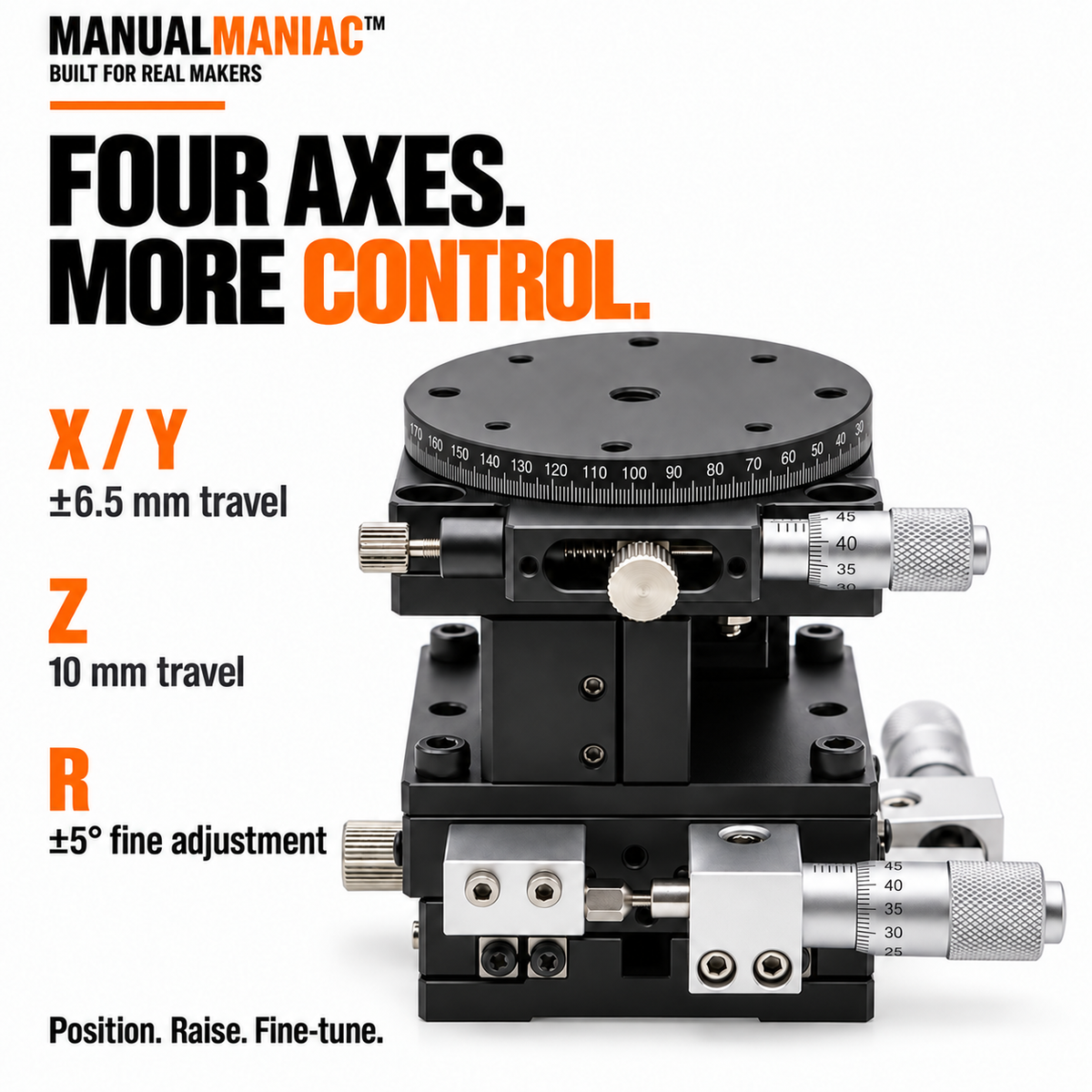

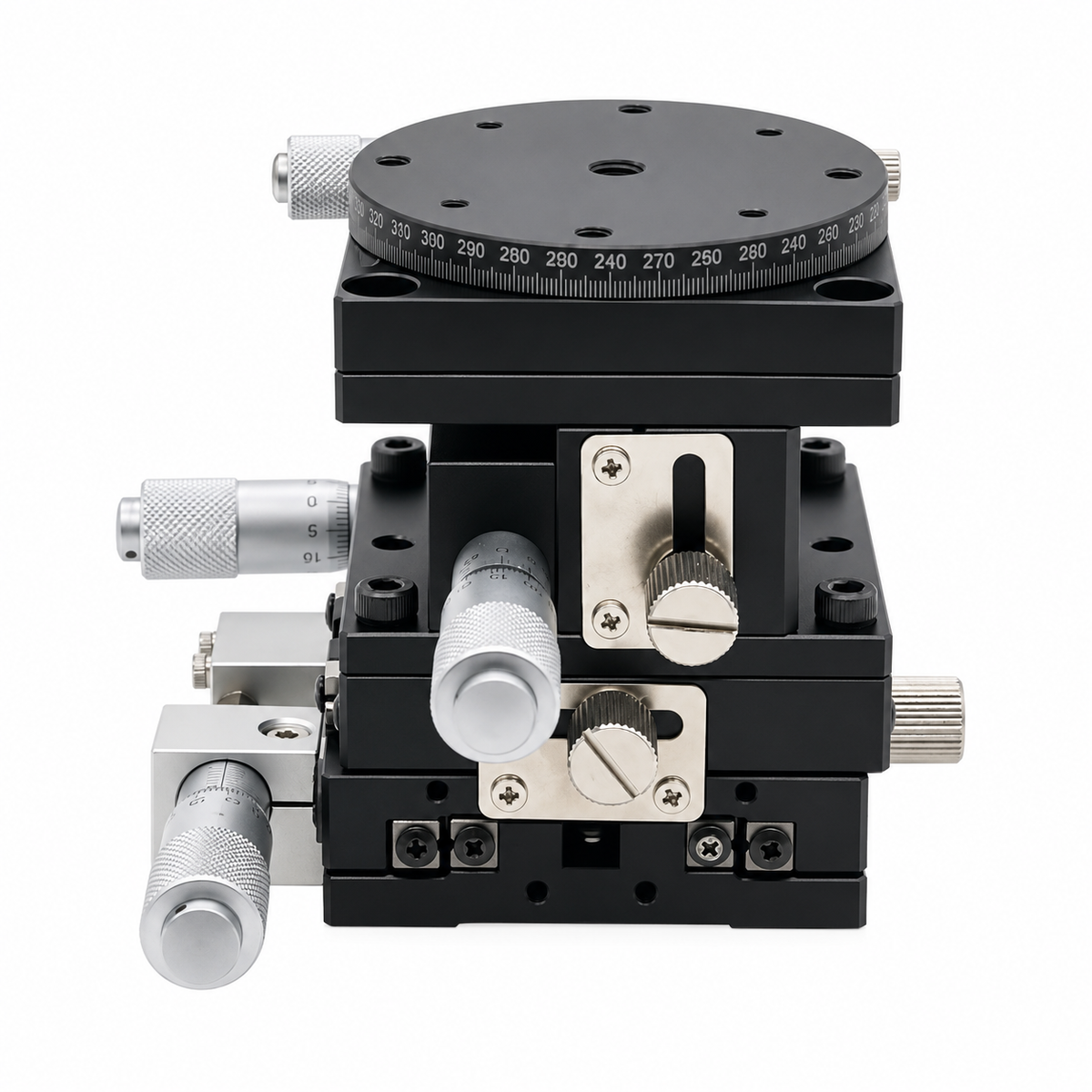

Manualmaniac™ PrecisionStage 4X

Position small parts with controlled four-axis accuracy. Fine-tune horizontal, vertical and rotational alignment from one compact, stable platform.

$179.99

4-Axis Precision Stage

Fine-tune positioning across the X, Y, Z and R axes

Make controlled adjustments with a 0.01 mm minimum reading

Keep parts stable on the cross-roller guided platform

Limited launch stock available

Free worldwide shipping · 30-day money-back guarantee

Daniel R.

“I use it for aligning small components before drilling and assembly. The adjustments feel smooth, and having control over all four axes makes precise positioning much easier.”

Thomas W.

“I build small models and needed something more controlled than a handheld drill. This machine is compact, steady, and much easier to use on delicate pieces.”

Robert H.

“Doesn’t take over my workbench and handles detailed drilling really well. The vertical lever makes it much easier to lower the bit smoothly and stay on target.”

4-Axis Control

Adjust position across the X, Y, Z and R axes

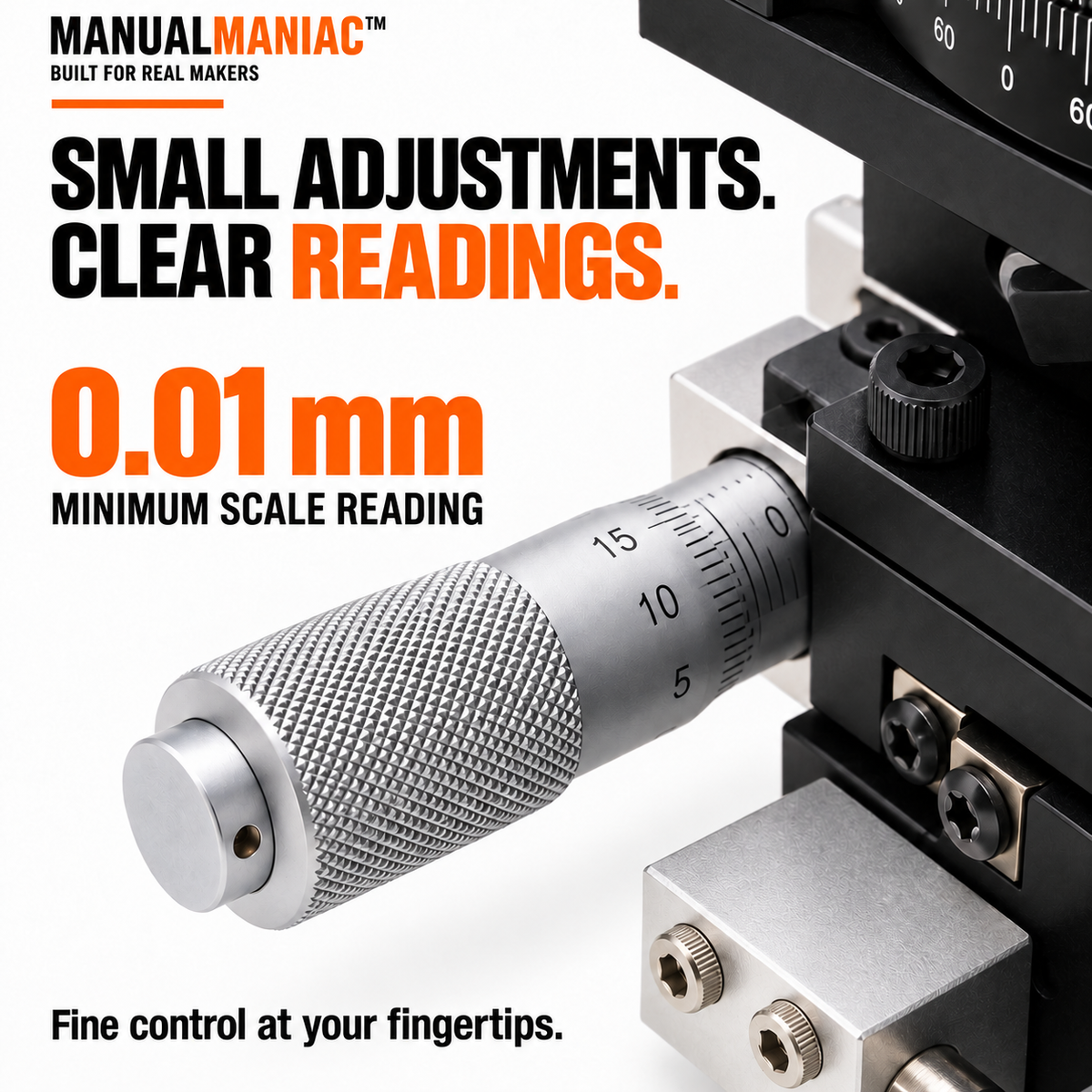

0.01 mm Fine Adjustment

Make small, controlled positioning changes

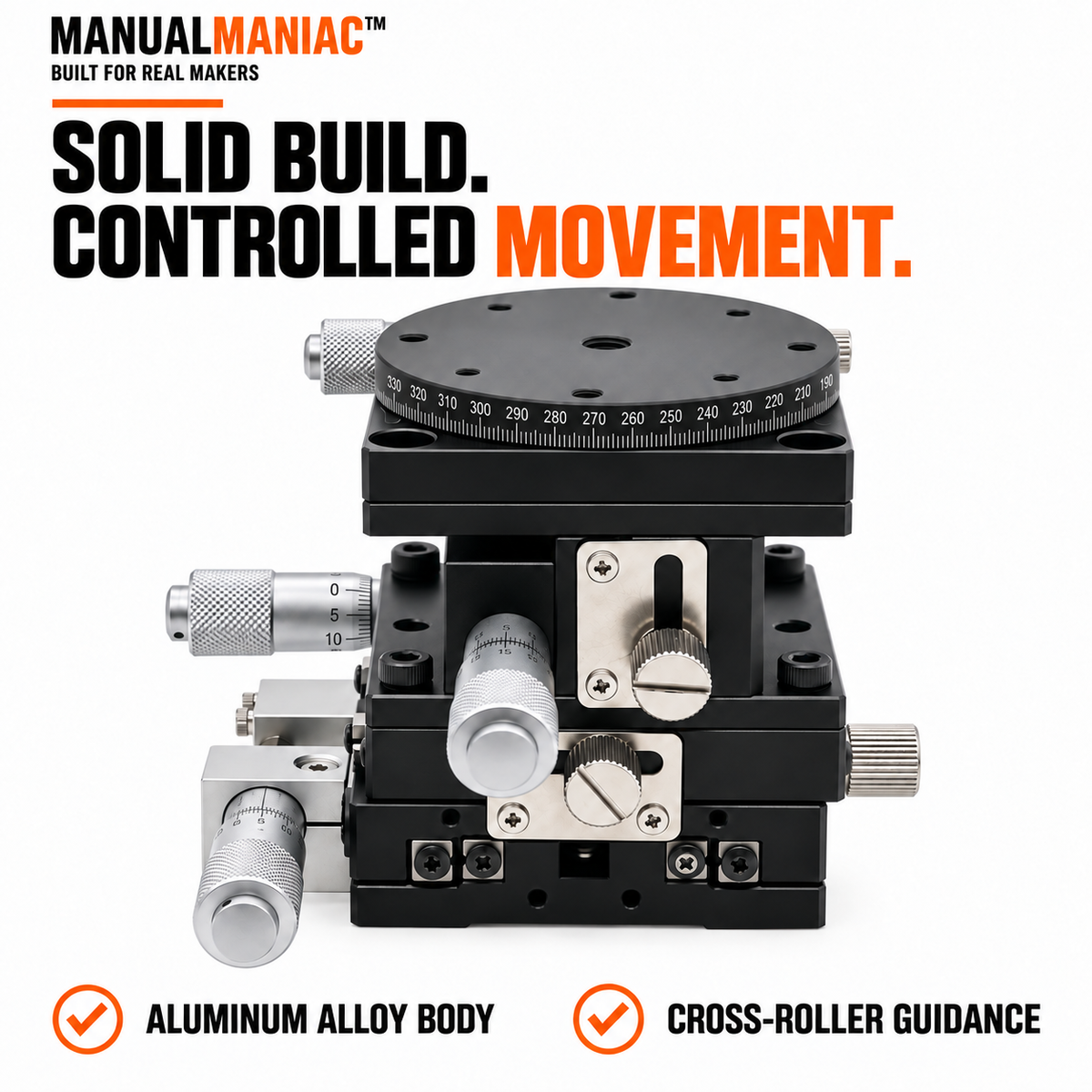

Cross-Roller Stability

Smooth movement with reliable platform support

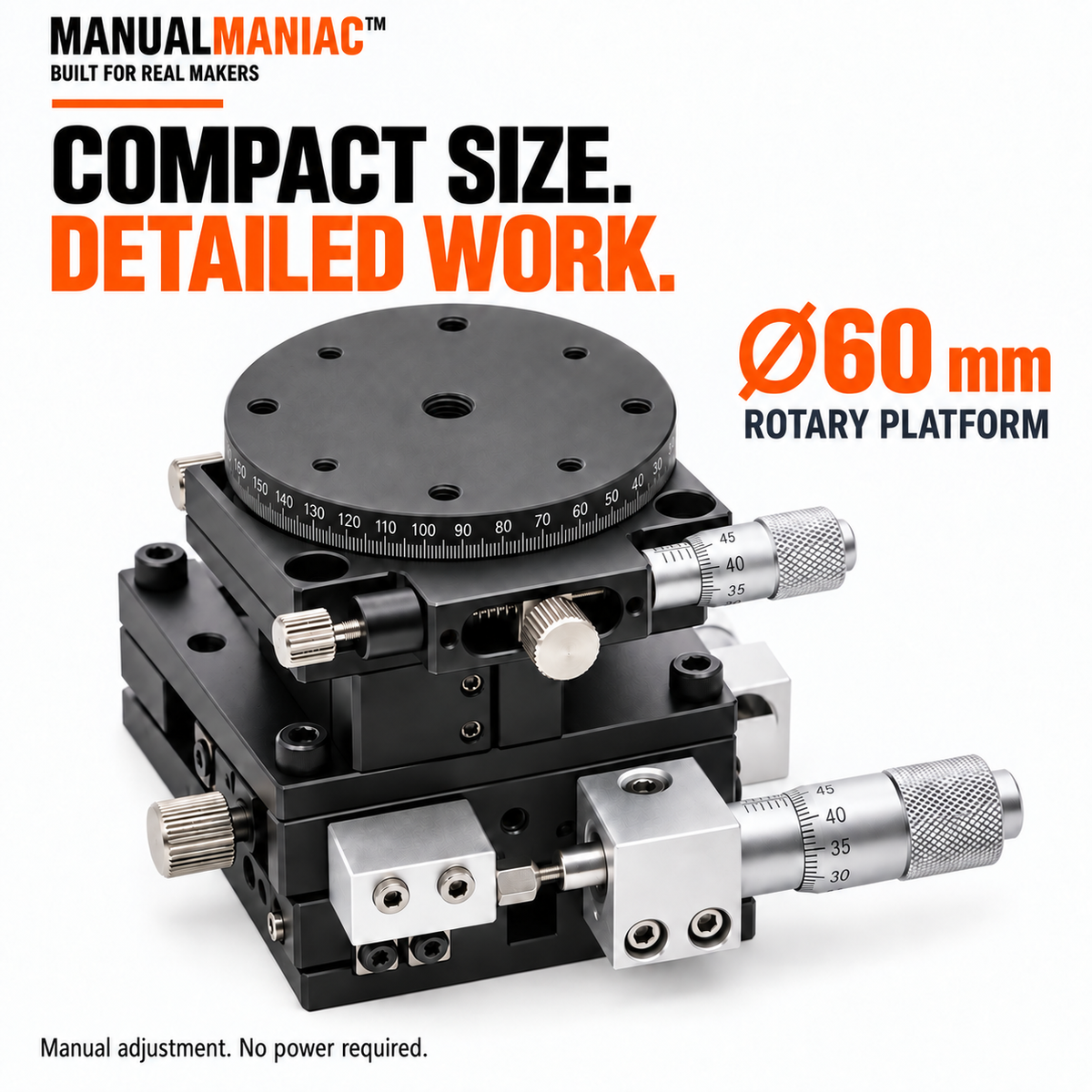

Compact 60 mm Platform

Precise positioning without crowding your workbench

How to Use

The PrecisionStage 4X gives you controlled movement across four axes, helping you accurately position small components for detailed work.

Place the platform on a stable workbench or mount it to compatible equipment using the available mounting points.
Secure the workpiece or compatible fixture to the 60 × 60 mm upper platform.
Adjust the X and Y controls to move the workpiece forward, backward, left or right.
Use the Z-axis control to raise or lower the platform by up to 10 mm.
Fine-tune the R-axis to rotate the platform within a ±5° range.
Check the final alignment before beginning drilling, inspection, assembly or other precision work.

For the best results, keep the load centred on the platform and do not exceed the rated 3 kgf capacity.

What’s Included

Your package includes:

1 × Manualmaniac™ PrecisionStage 4X
1 × Integrated 60 × 60 mm positioning platform
Built-in X, Y, Z and R adjustment controls
Integrated V-type cross-roller guide system

The platform arrives assembled and ready to integrate into a compatible workshop, inspection or positioning setup.

Clamps, mounting hardware, workpieces and additional tools shown in product images are not included unless specifically stated.

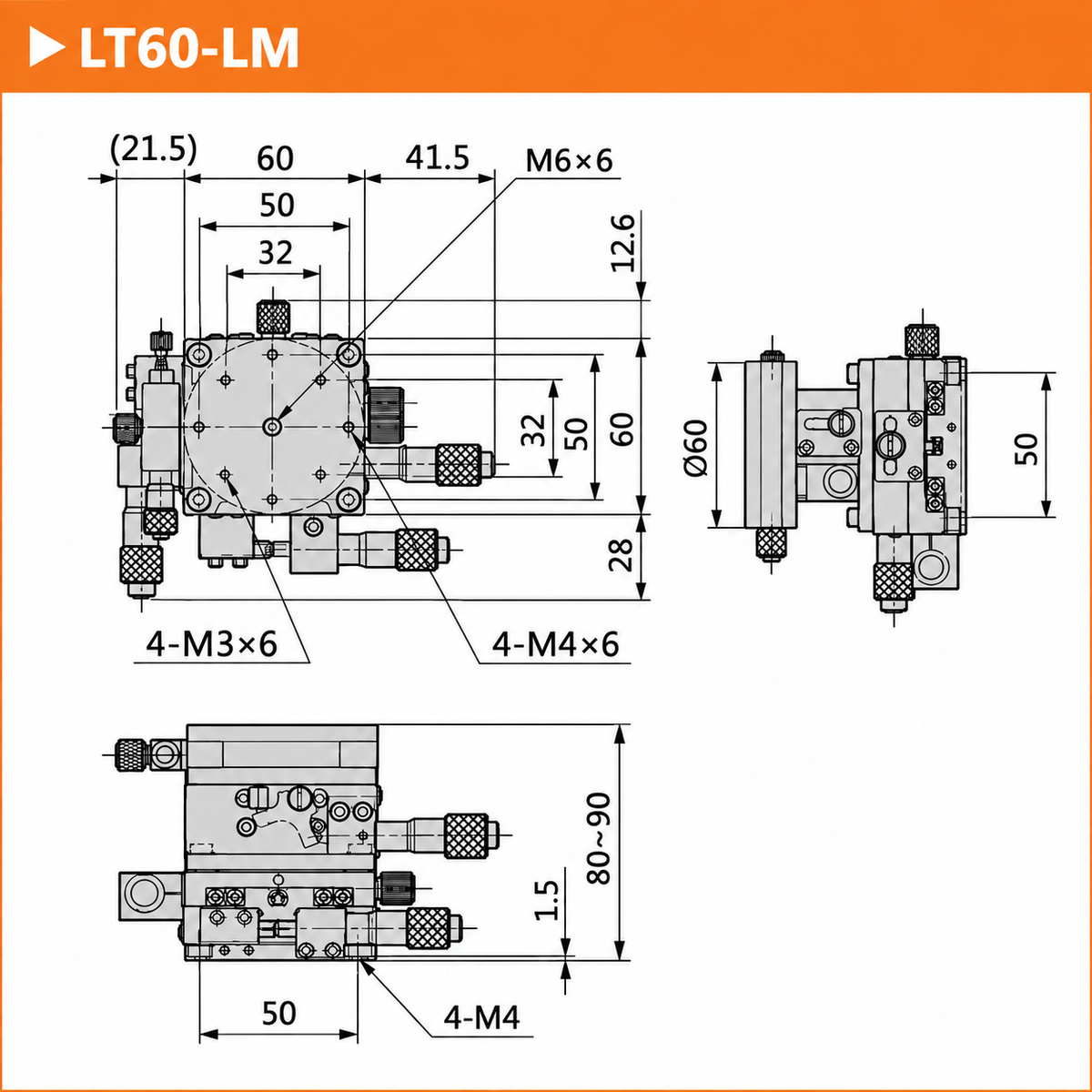

Specifications

Product Type: Manual four-axis positioning platform
Axis Configuration: X, Y, Z and R
Platform Size: 60 × 60 mm
X-Axis Travel: ±6.5 mm
Y-Axis Travel: ±6.5 mm
Z-Axis Travel: 10 mm
R-Axis Adjustment: ±5°
Minimum Reading: 0.01 mm
Straightness: 0.01 mm
Maximum Load: 29.4 N / 3 kgf
Guide System: V-type cross-roller guide
Material: Aluminum alloy
Color: Black
Product Weight: Approximately 0.9 kg
Manufacturer Reference: XYZR60
Package Size: 10 × 10 × 8 cm

Ideal for precision assembly, component inspection, optical alignment, electronics work, model making and other applications where small positioning changes matter.

Shipping & returns

All orders include free worldwide shipping and tracking.

Estimated delivery:

United States: 5–10 business days
United Kingdom and Europe: 5–12 business days
Canada and Australia: 7–15 business days
Rest of the world: 7–15+ business days

If you’re not satisfied with your order, contact us within 30 days of delivery to request a return under our money-back guarantee.

AS SEEN IN

STOP GUESSING. START POSITIONING WITH PRECISION.

Small components can be difficult to align accurately by hand. Even a slight movement can affect drilling, inspection, assembly or adjustment results.

The Manualmaniac™ PrecisionStage 4X gives you controlled movement across the X, Y, Z and R axes. Fine-tune the position, height and angle of your workpiece without repeatedly moving the entire setup by hand.

Its cross-roller guide system provides smooth movement, while the compact 60 × 60 mm platform fits easily into detailed workshop setups.

Fine-tune position across four independently adjustable axes.
Make controlled adjustments with a 0.01 mm minimum reading.
Keep small components stable throughout precision work.

“Aligning small components by hand used to take several attempts. With the four-axis adjustment, I can make tiny corrections without rebuilding the entire setup. It saves time and gives me much better control.”

Thomas W.

How the PrecisionStage 4X Works

Mount the Platform

Place the PrecisionStage on a stable surface or attach it to compatible equipment using the available mounting points.

Adjust the Position

Use the X and Y controls to move the workpiece forward, backward, left or right with controlled accuracy.

Secure the Workpiece

Position your component or compatible fixture on the 60 × 60 mm platform and make sure it is held securely.

Fine-Tune Height & Angle

Adjust the Z axis for vertical movement, then use the R axis to fine-tune the platform angle within ±5°.

One Precision Platform, Multiple Detailed Jobs

Position Small Parts with Confidence

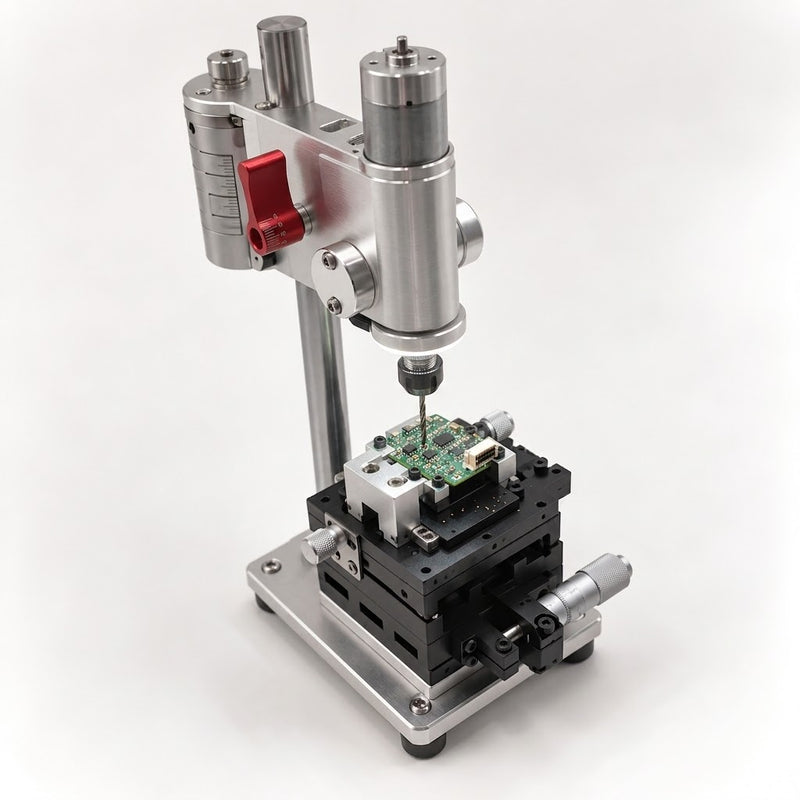

Precisely align small components beneath a drill, milling tool or other compatible workshop equipment. Adjust the position across four axes without repeatedly moving the entire setup by hand.

Make Accurate Alignment Adjustments

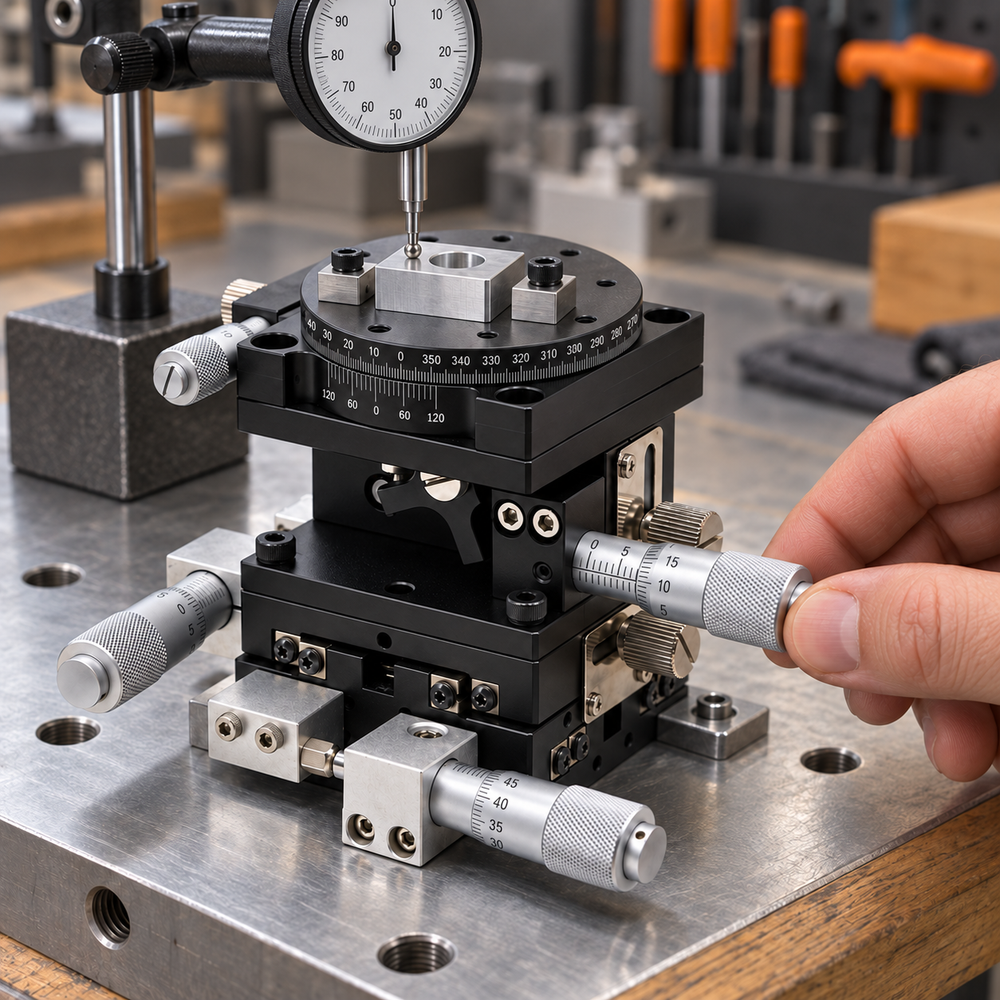

Move components in controlled increments during measurement, optical alignment and inspection. The 0.01 mm minimum reading helps you make small corrections when accuracy matters.

Bring Components into Position

Fine-tune the height, direction and angle of small parts during electronics work, prototyping and detailed mechanical assembly. The compact platform keeps adjustments controlled without crowding your workspace.

What This Precision Platform Brings to Your Bench

Controlled four-axis positioning for detailed workshop, inspection and assembly tasks.

0.01 mm

Fine Adjustment

Make small, controlled positioning changes with a minimum scale reading of 0.01 mm when precise alignment matters.

4-Axis

Complete Positioning Control

Adjust your workpiece across the X, Y and Z axes, then fine-tune its rotational angle using the R-axis control.

3 kg

Stable Load Support

The solid aluminum platform supports centred loads up to 29.4 N, equivalent to approximately 3 kgf.

The Difference Is Four-Axis Control

Manual Repositioning

Standard XY Table

X, Y, Z & R adjustment

XY only

0.01 mm minimum reading

Varies

10 mm vertical travel

Usually unavailable

±5° rotational adjustment

Usually unavailable

Cross-roller guide system

Varies

Compact 60 × 60 mm platform

Varies

Supports loads up to 3 kg

Depends on setup

Varies

4.8 out of 5 customer rating

Built for Small Jobs That Demand Real Control

See how makers use the PrecisionStage 4X for accurate positioning, alignment and assembly.

Daniel K.

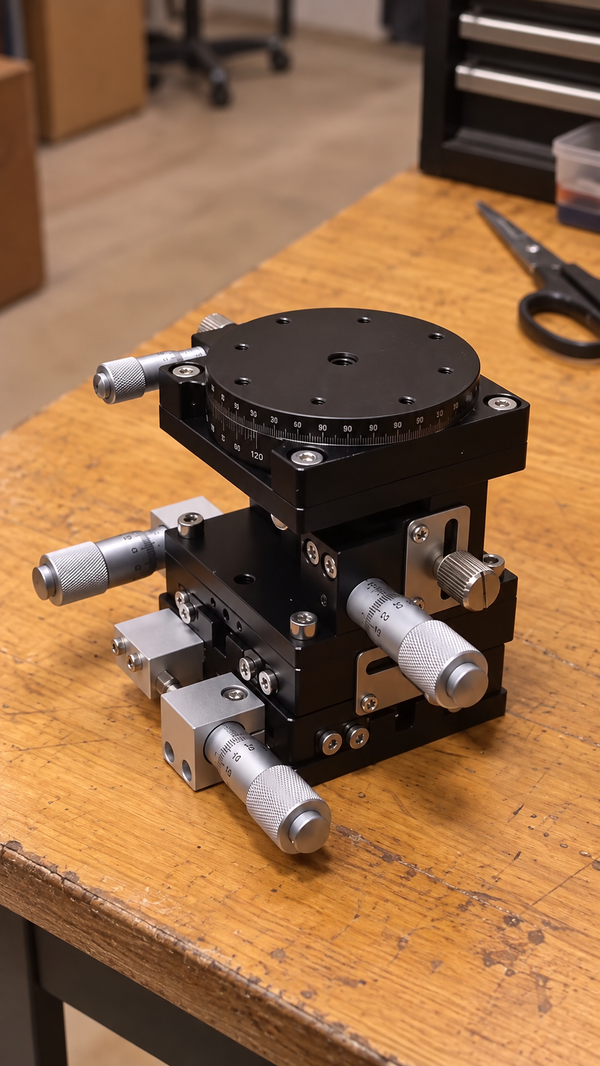

“Getting small metal parts aligned used to take several attempts. Now I can adjust the position gradually across each axis without moving the entire setup.”

Chris M.

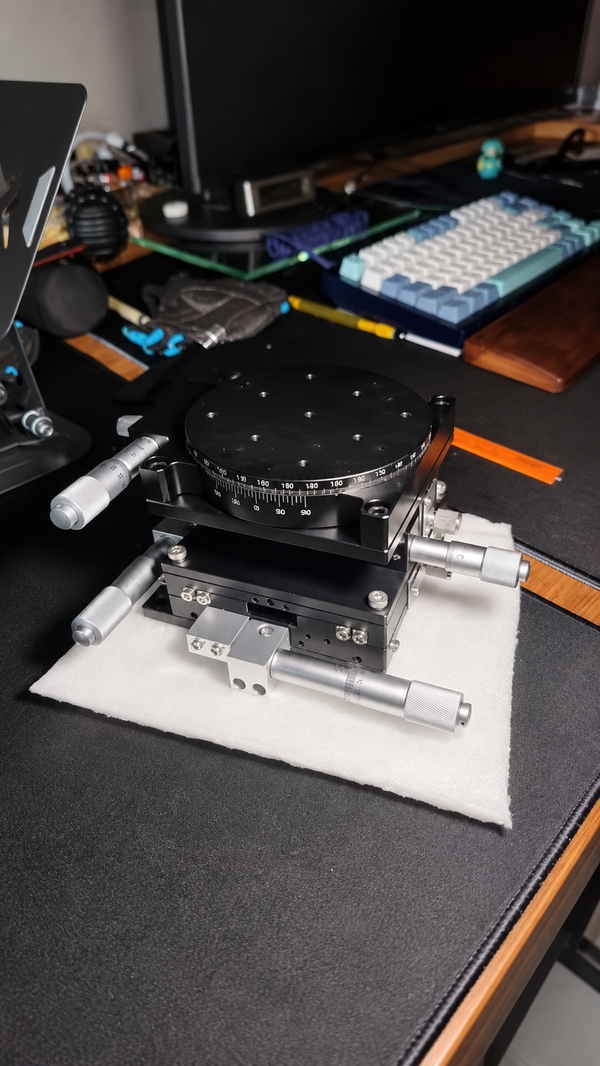

“The platform is compact but feels solid on my workbench. The X and Y adjustments are smooth, and the Z control makes height alignment much easier.”

Robert S.

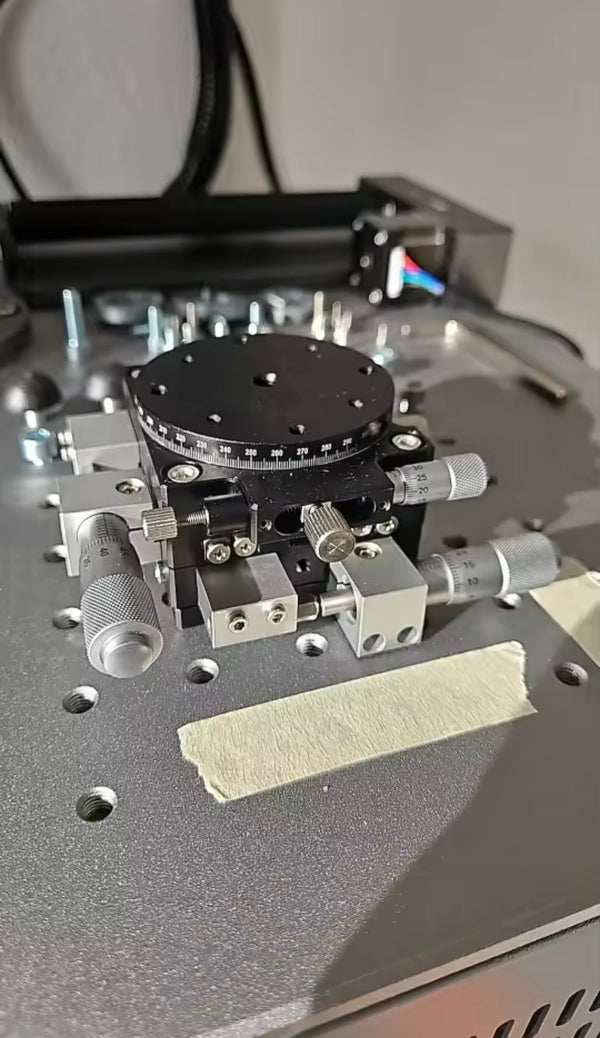

“I use it for positioning small components during drilling and inspection. The rotational adjustment is especially useful when the part needs a slight angle correction.”

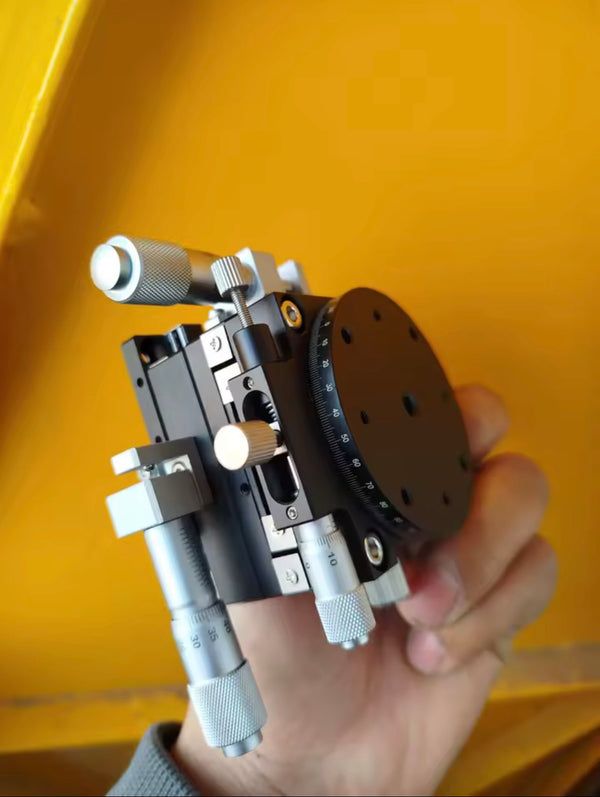

Ethan B.

“The 0.01 mm scale makes fine adjustments much more controlled than positioning parts by hand. It has become a useful addition to my small workshop setup.”

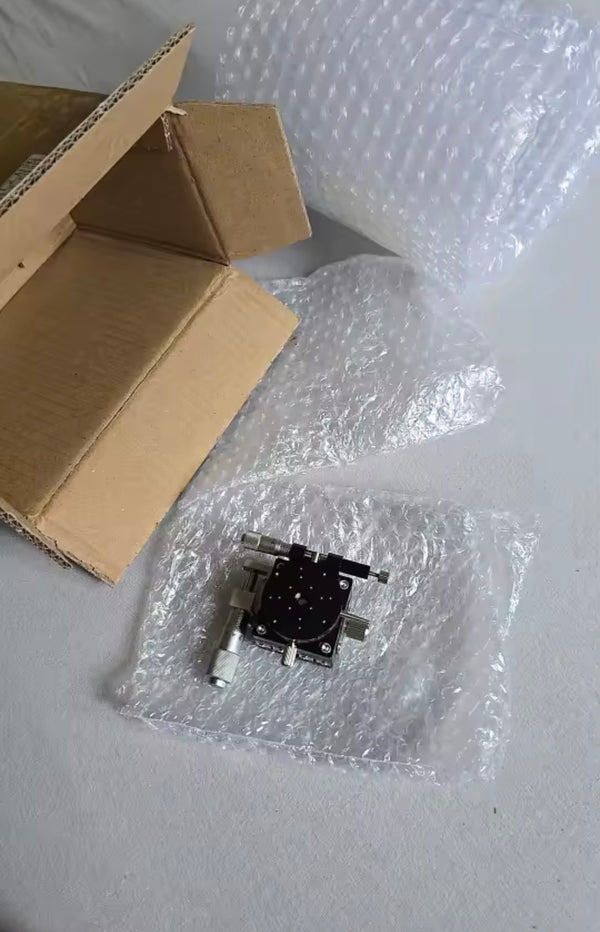

James R.

“Perfect for detailed assembly work. I can make tiny corrections without unclamping and repositioning everything each time.”

Michael A.

“The cross-roller movement feels smooth, and the platform stays stable with smaller components. It takes up very little room on my bench.”

Answers to Your Most Important Questions
